现货全新原装6ES7416-2XP07-0AB0 S7-400 CPU416-2

SIMATIC S7-400，CPU 416-2, 中央处理器，带： 内存 8 MB， （4 MB 代码，4 MB 数据）， 1. 接口 MPI/DP 12 MBIT/S， 第 2 个 PROFIBUS DP 接口.

西门子代理商现货供应

现货供应

上海斌勤电气技术有限公司

发布人：康奎 （销售经理）发布

本公司签约正式的销售合同，并开具13%的增-值-税-发-票。

外地客户统一采用快递发货,也支持上门提货，货物快递到您手时候,一定要开箱检验!如有损坏,请拒绝签收,并由快递公司返回!

在你签收后表示你对该货物没有异议!我们会给予您检测时间,并请在货物到给予确认,谢谢合作!

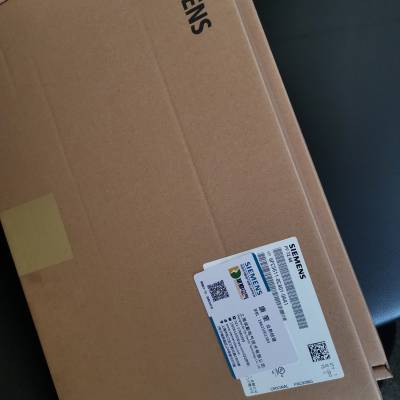

产品均为密封包装，外包装详见产品图片，白色标签上均有产品订货号和产地，各位买家在收到货后，请核对型号，无误后再拆包装、

本公司宗旨：本着以诚信为本，以顾客为中心.质量***·服务诚信·价格实惠.

为用户提供专业的自动化产品及服务！

相关西门子产品技术：

CPU 416

订货数据 附件 产品信息 组态工具

跳转到

概述

应用

设计

功能

技术规范

更多信息

概述

高端性能范围内的高性能 CPU

适用于对性能要求很高的工厂

CPU 416-3 PN/DP 中集成了 PROFINET 功能

应用

CPU 416-2, CPU 416-3 and CPU 416-3 PN/DP are powerful SIMATIC S7-400 CPUs.

The integrated PROFIBUS DP interfaces in the CPU 416-2 and CPU 416-3 make it possible to connect directly to the PROFIBUS DP fieldbus as a master or slave.

An additional DP master system can be connected to the CPU 416-3 and CPU 416-3 PN/DP using the IF 964-DP interface module.

The integrated PROFINET interface of the CPU 416-3 PN/DP includes switch functionality when the ERTEC 400-ASIC is used. This forms the basis for providing two externally accessible PROFINET ports. In addition to hierarchical network topologies, this also enables the creation of line structures in the new S7-400 controllers.

Note:

Only the 6ES7 964-2AA04-0AB0 interface submodule may be used.

设计

Both CPUs are equipped with the following:

Powerful processor:

The CPUs achieve instruction execution times as low as 0.03 ?s per binary instruction.

CPU 416-2: 5.6 MB RAM (of which 2.8 MB each for program and data);

CPU 416-3: 11.2 MB RAM (of which 5.6 MB each for program and data);

CPU 416-3 PN/DP: 11.2 MB RAM (of which 5.6 MB each for program and data);

fast RAM for parts of the user program relevant to execution.

Flexible expansion:

Up to 262144 digital and 16384 analog inputs/outputs.

Multi-point interface MPI:

With the MPI it is possible to establish simple networking of max. 32 stations at a data transmission rate of up to 12 Mbit/s. The CPUs can establish up to 44 connections to stations of the communications bus (C bus) and the MPI.

Mode selector switch:

Designed as toggle switch.

Diagnostics buffer:

The last 120 fault and interrupt events are retained in a ring buffer for diagnostic purposes. The number of entries can be parameterized.

Real-time clock:

The date and time are appended to diagnostic messages of the CPU.

Memory card:

For expansion of the integrated load memory. RAM and FEPROM cards (FEPROM for retentive storage) are available

Combined MPI/DP interface and integrated PROFIBUS DP interface (CPU 416-2 and CPU 416-3):

The PROFIBUS DP master interface allows a distributed automation configuration offering high speed and ease of use. From the user&＃39;s point of view, the distributed I/O is treated as central I/O (same configuring, addressing and programming).

Mixed configuration: SIMATIC S5 and SIMATIC S7 as PROFIBUS master according to EN 50170.

CPU 416-3 and CPU 416-3 PN/DP also include:

A module slot:

An additional PROFIBUS DP master system can be connected via the IF 964-DP interface module.

CPU 416-3 PN/DP additionally includes:

PROFINET interface with 2 ports (switch):

PROFINET I/O, 256 IO devices connectable

PROFINET CBA

功能

Block protection:

A password concept protects the user program from unauthorized access.

Integral HMI services:

The user only has to specify the source and destination of the data with HMI devices. The data are then transported cyclically and automatically by the system.

Integrated communications functions:

PG/OP communication

Shared data communication

S7 standard communication

S7 communication

Firmware update using network

CPU 416-3 PN/DP additional:

Open communication over TCP/IP, UDP and ***-on-TCP (RFC1006)

Distributed intelligence in Component Based Automation (CBA) on PROFINET

Additional diagnostic options with integrated web server

Parameterizable attributes

The STEP 7 tool "Hardware Configuration" can be used to program the properties and response of the S7-400 including the CPUs, e.g.

Multi-point interface MPI:

Definition of station addresses.

Startup/cycle behavior

Stipulation of the maximum cycle time and communications load

Address assignment:

Addressing of I/O modules.

Retentive ranges:

Definition of the number of retentive bit memories, counters, timers, data blocks and clock memories.

Size of the process image, local data.

Length of the diagnostics buffer

Protection level:

Definition of access authorization for program and data

System diagnostics:

Definition of the handling and scope of diagnostic messages

Timed interrupts:

Setting of periodicity

CPU 416-3 PN/DP additional:

PROFINET interface

Parameterization of time synchronization using NTP procedure

Indication and information functions

Status and error indicators:

LEDs indicate internal and external errors and operating states such as RUN, STOP, Restart, Test function, for example

Test functions:

The programming device can be used to display signal states in program execution, modify process tags irrespective of the user program, read out the contents of stack memories, run separate program steps and inhibit program components

Information functions:

The programming device can be used to provide the user with information on the memory capacity and operating mode of the CPU and the current utilization of the working and load memories

技术规范

商品编号

6ES7416-2XP07-0AB0

6ES7416-3XS07-0AB0

6ES7416-3ES07-0AB0
